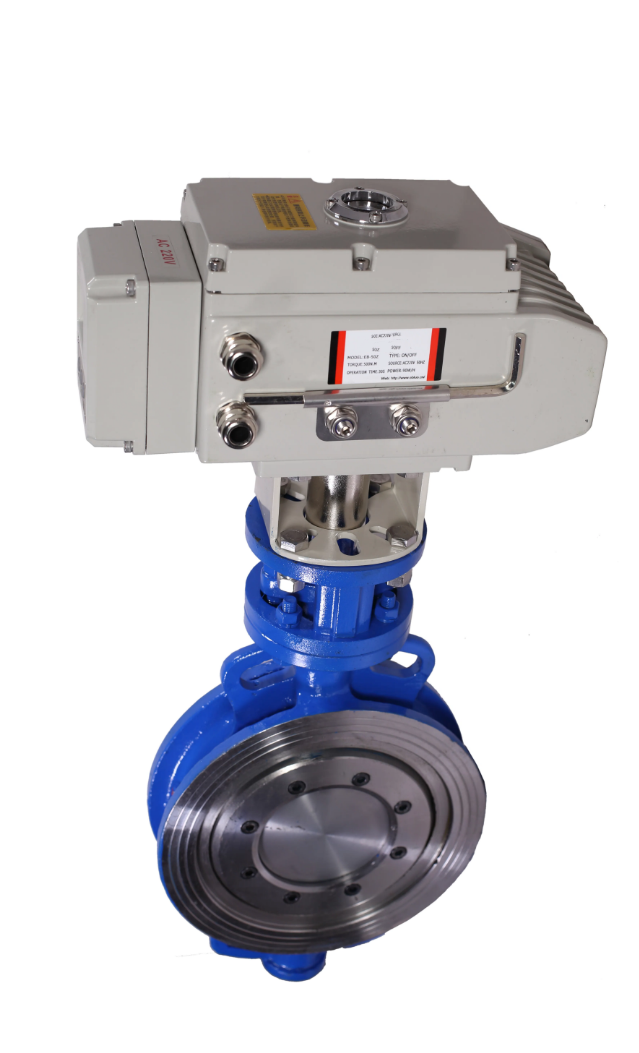

Electric metal seated butterfly valve catalogue

 DOWNLOAD

In this catalogue, you will find all datasheet for electric metal seated butterfly valves, including material, dimension, assembly drawing, working temperature, nominal size, pressure rating.

Electric metal seated butterfly valve seals are made of metal materials or other hard materials, such as stainless steel + graphite or stainless steel+HF, and are widely used in chemical, environmental protection, gas, oil, steam, water and corrosive media with medium temperature ≤ 550 ℃. In a variety of pipelines, it is used for switch cut-off or percentage adjustment!

1. The special metal sealing system can ensure high sealing performance in all temperature ranges from ultra-low temperature to ultra-high temperature;
2. The triple eccentric structure design enables the valve closing process to be completed by the elastic pressure of the sealing ring,
3. Blow-out proof shaft and anti static design;

4. The electric actuator receives the 4~20mA signal of the industrial automation control system to precisely control the valve opening, so as to achieve the adjustment and control of different process parameters such as flow, temperature and pressure.
